products

Gang tool lathe

Turret lathe

Turn-mill compound machine tool

Dual spindle turn-mill compound

Precision surface grinder

Model

P120

P160

P200

Processing range

Maximum spin diameter on the saddleΦ320mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ120mm
Rotation diameter on carriageΦ126mm
Maximum turning length300mm
Chuck size5'
Bar capacityΦ36mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length340mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length320mm
Chuck size8'
Bar capacityΦ52mm

Products

Model

C160

C200

C250

C300

Specification

C160-300

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ42mm

Specification

C200-300

C200-500

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ400mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length488mm
Chuck size8'
Bar capacityΦ52mm

Specification

C250-500

C250-1000

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ400mm
Standard turning diameterΦ250mm
Rotation diameter on carriageΦ300mm
Maximum turning length488mm
Chuck size5'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ580mm
Maximum turning diameterΦ500mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ1000mm
Maximum turning length500mm
Chuck size10'
Bar capacityΦ72mm

Specification

C300-1000

C300-1500

C300-2000

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ620mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length1000mm
Chuck size12'
Bar capacityΦ75mm

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ620mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length1500mm
Chuck size12'
Bar capacityΦ75mm

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ640mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length2240mm
Chuck size12'
Bar capacityΦ75mm

Specification

Model

P160Y

P160MY

C160M

C160MY

C200M

C200MY

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ480mm
Maximum turning diameterΦ200mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ250mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ225mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length240mm
Chuck size6'
Bar capacityΦ42mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ330mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length450mm
Chuck size8'
Bar capacityΦ52mm

Model

C200MYS

CX200

Double spindle single turret turning and milling compound machine tool

Processing range

Spindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio1：1
Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)

Double spindle double turret turning and milling compound machine tool

Processing range

Spindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio1:1
Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)

Products

Series

Saddle surface grinder

Movable column surface grinder

CNC surface grinder

Model

G818A

G818S

G2550A

G2550S

G306K

G306S

G408K

G408S

Processing range

Table working area460X200mm
Maximum left and right movement540mm
Maximum forward and backward movement250mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench150kg
Workbench T-slot14mm×1N
Workbench speed5～25m/min

Processing range

Table working area460X200mm
Maximum left and right movement540mm
Maximum forward and backward movement240mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench150kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area500X250mm
Maximum left and right movement560mm
Maximum forward and backward movement275mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench250kg
Workbench T-slot14mm×1N
Workbench speed5～25m/min

Processing range

Table working area500X250mm
Maximum left and right movement560mm
Maximum forward and backward movement275mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench250kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center570mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

G306S Saddle type full cover surface grinder

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center570mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area800×400mm
Maximum left and right movement880mm
Maximum forward and backward movement450mm
Maximum distance from work surface to spindle center580mm
Maximum weight of the workbench700kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area800×400mm
Maximum left and right movement880mm
Maximum forward and backward movement450mm
Maximum distance from work surface to spindle center580mm
Maximum weight of the workbench700kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Model

G5010S

G5012S

G6015S

G6030S

G7020S

Processing range

Table working area1000X500mm
Maximum left and right movement1140mm
Maximum forward and backward movement540mm
Maximum distance from work surface to spindle center600mm
Maximum weight of the workbench800kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area1200X500mm
Maximum left and right movement1340mm
Maximum forward and backward movement540mm
Maximum distance from work surface to spindle center600mm
Maximum weight of the workbench800kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area1500×600mm
Maximum left and right movement1600mm
Maximum forward and backward movement660mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench800kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

Processing range

Table working area3000×600mm
Maximum left and right movement3250mm
Maximum forward and backward movement660mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench1500kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

G7020S Moving column full cover surface grinder

Processing range

Table working area2000×700mm
Maximum left and right movement2230mm
Maximum forward and backward movement760mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench1500kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

Model

G306NC

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center540mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Front and rear hand wheel feed (1 grid)	0.02mm
Automatic feeding forward and backward	0.2～20mm
Fast forward and backward movement (50HZ)	1000mm/min

Up and down rapid movement amount	300mm/min
Up and down manual feed (1 grid)	0.01mm

Grinding wheel size	Φ350mm×20-40×Φ127mm
Spindle speed	1450rpm

Spindle motor	5.5kW
Up and down drive servo motor	0.08kW
Hydraulic motor	2.2kW
Flush motor	0.18kW
Front and rear drive motors	0.08kW

Appearance size (L× W× H)	3600×2700×1900mm
Gross weight	3300kg

香港经典a毛片免费观看播放,欧美bbwbbwbbwxxxx,亚洲国产精品一区二区久久hs,亚洲AV日韩精品一区二区三区,日本中文字幕亚洲乱码,久久天天躁狠狠躁夜夜96流白浆 ,国产欧美一区二区精品性色,日本精品AⅤ一区二区三区

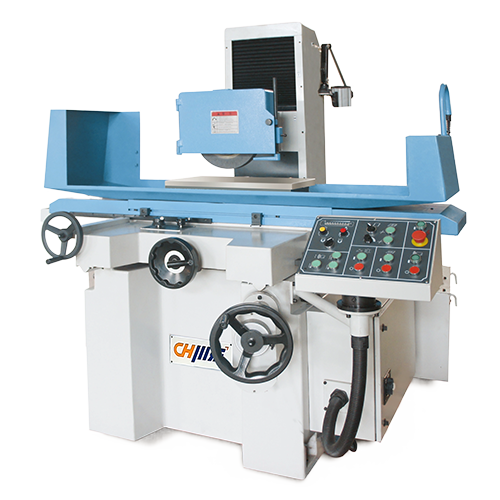

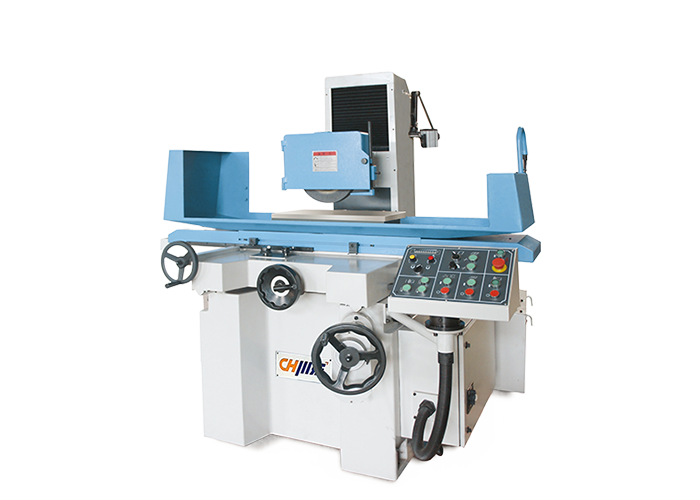

G408K Saddle surface grinder

Product Features

Specifications

Component Description

Table working area	800×400mm
Maximum left and right movement	880mm
Maximum forward and backward movement	450mm
Maximum distance from work surface to spindle center	580mm
Maximum weight of the workbench	700kg
Workbench T-slot	14mm×3N
Workbench speed	2～25m/min

Z-axis drive	The upper and lower parts are driven by precision-grade trapezoidal screws, which ensure accurate feed. It is equipped with a fast lifting motor to reduce labor intensity.
Spindle group	The spindle is the heart of the machine tool. The accuracy of the spindle is the most important component of the quality of a machine tool. We use Taiwan's original famous brand spindle, which undergoes strict heat treatment and precision machining. It is matched with NSK precision matching bearings and special grease is filled inside the spindle. , long-term reliable use, maintenance-free.
Use environmental conditions	Relative humidity: 35～90%R/H (no condensation) Ambient temperature: 0℃_x005f∽40℃ Air medium: non-corrosive medium Light: Sufficient and well ventilated The machine tool should operate stably for a long time under the above working environment.
Operation and maintenance space	The size of the G408K machine is 3600mm in length, 2700mm in width and 1900mm in height. For safety reasons and convenience in operation and maintenance, the space must be larger than the size of the machine. It is recommended to leave 500mm on the left and right sides.
